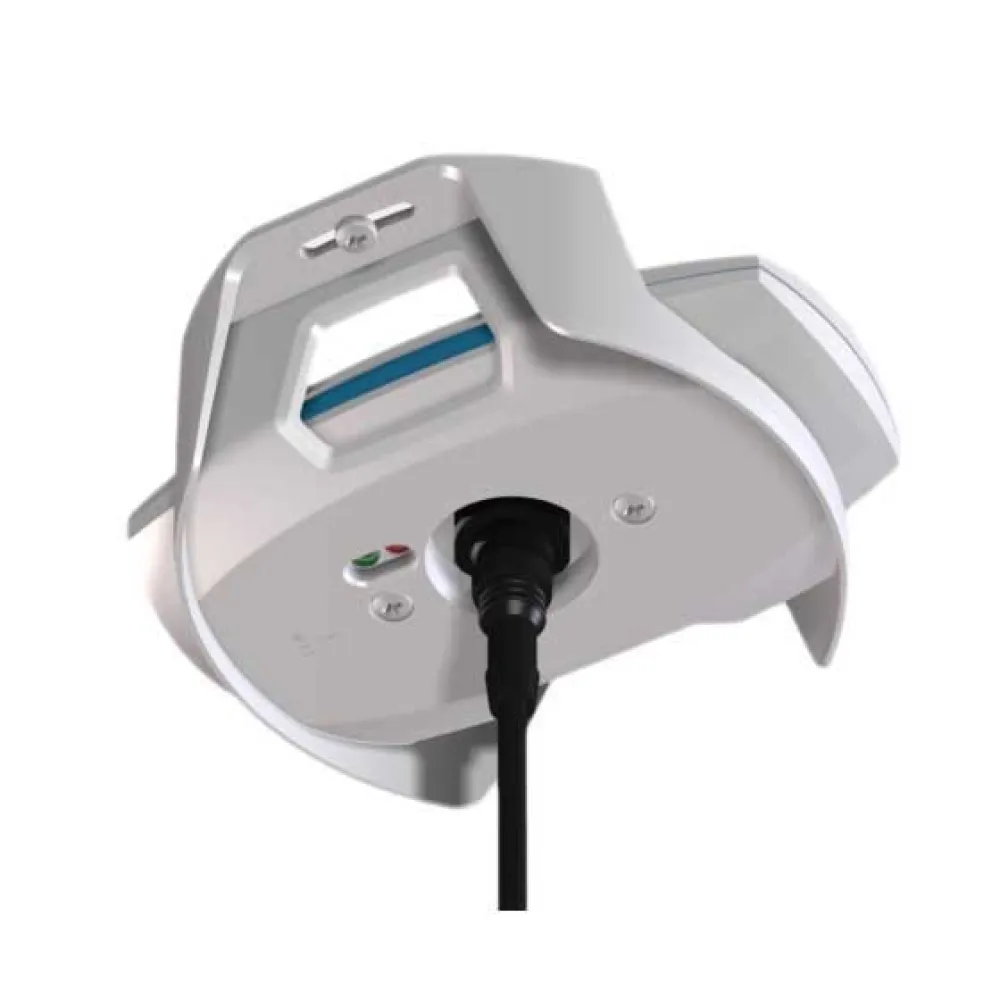

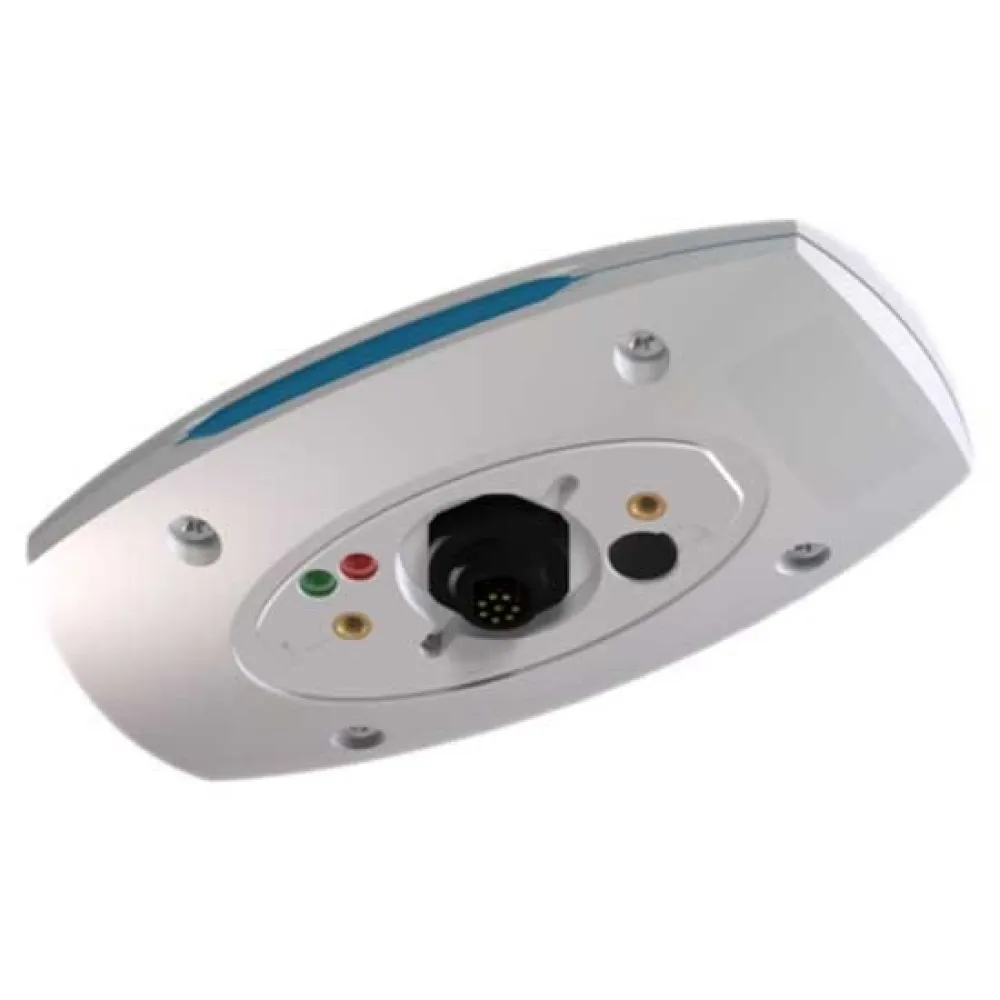

Thrane nn-665-nn Антенна LT1000 NRU 25x20x15

The LT-1000 Navigation Reference Unit (NRU) is a maritime navigation product from Lars Thrane A/S. The LT-1000 NRU is designed for the leisure as well as the professional maritime markets. The LT-1000 unit meets all standards and certification requirements needed for worldwide maritime navigation equipment. Performance: The LT-1000 NRU is a small, compact, and very advanced unit with 12 precision sensors (magnetometers, gyros, accelerometers, barometer, thermometer, and GNSS). With the use of sensor-fusion and Kalman filtering, the LT-1000 NRU outputs: true heading, roll, pitch, position, ground speed, course over ground, air pressure, and temperature in real-time, with high precision and resolution. The LT-1000 NRU includes advanced technologies such as: - Kalman filtering. - Calculation of magnetic variation based on the World Magnetic Model (WMM). - Compensation of soft and hard iron (deviation). - Built-in magnetometer calibration algorithm. - Receive and track multiple satellite systems (GPS, GPS & GLONASS, or GPS & BeiDou). - Support for Satellite-Based Augmentation System (SBAS): EGNOS, WAAS and MSAS The LT-1000 NRU makes use of the latest technology within GNSS receivers, with market leading acquisition and tracking performance. The LT-1000 NRU is designed and built for the demanding and rough environment at sea and with an operational temperature range from -408304.C to +558304.C (-408304.F to +1318304.F). Key. Features: - Navigation Reference Unit with 12 precision sensors. - True heading, magnetic heading, deviation, variation, roll, pitch, UTC time and date, position, satellite information, ground speed, course over ground, air pressure and temperature. - 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with SBAS correction. - Standard (figure 8-pattern) and Adaptive deviation calibration algorithm. - Simultaneously NMEA 0183 and NMEA 2000. - Configurable NMEA 0183 sentences (enable/disable, talker ID, output rate). - Easy configurable NMEA 2000 termination resistor (open or terminated). - Easy configurable NMEA 0183 data rate (4800 or 38400 baud). - Each unit is factory calibrated and functional tested over temperature prior to shipment. - Worldwide maritime certification. Specifications: - Certification & standards: CE, IEC 60945, IEC 60950, EN 300440-2, FCC, IC, RCM, RoHS, NMEA 0183, NMEA 2000. - Dimensions, with pole mount: 151.4 x 81.65 x 128.0 mm (5.96 x 3.21 x 5.04 in.). - Weight, with pole mount: 240 g (0.53 lbs). - Temperature (ambient), operational: -40°C to +55°C (-40°F to +131°F). - Temperature (ambient), storage: -40°C to +85°C (-40°F to +185°F). - Waterproof: IP46 / Humidity: 95% non-condensing 40°C. - Communication Interface: 8-pin female connector for NMEA 0183, NMEA 2000 and power. - Input power: 9-40 VDC. - Power consumption: < 1W. - Load Equivalent Number (LEN): 2. - Compass safe distance: 0.3 m (1 ft) In The Box: - LT-1000 NRU. - Pole & Roof Mount. - 10m Cable Multi 8-pin Simple-Cut (M). - Screw-in Conn. NMEA 2000 Micro-C (M). - Quick Installation Guide. - Safety Instructions Sheet. - Unit Test Sheet INSTALLATION & NAVIGATION: The LT-1000 Navigation Reference Unit is easy to mount on a 1? pole (optional installation: roof mount) with a single cable supporting NMEA 0183, NMEA 2000, and power. The built-in magnetometer calibration algorithm will quickly compensate for heading deviation, and the LT-1000 NRU will output reliable navigation data. An external PC installation and service software is available for optional configuration and maintenance of the LT-1000 NRU. More than 40 years of experience have been put into the design and construction of the advanced LT-1000 NRU, with an exceptional performance and specification level.
